Wearables Design Kit

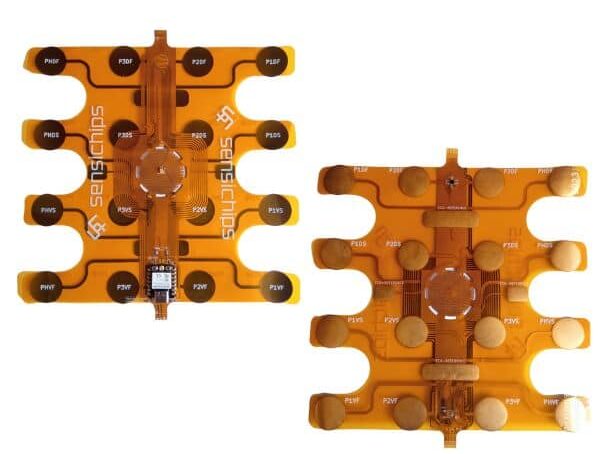

This wearable smart patch is part of a kit designed to facilitate the experimentation and accelerate the development of artificial intelligence-based health diagnostic devices, from wrist watches, clothing, bracelets, neckless, VR helmets to miniature smart rings.
The sensor patch makes available an extensive set of physiological measurements and it is complemented by an SDK and the SLM-Studio multi-sensors data logging and AI framework, running on most PCs. All measurements are performed by a single SENSIPLUS analog front-end chip which assures coordinated and timed data acquisition for sensor fusion.
The 16 electrodes matrix allow to intermix bio-impedance, bio-potential and electrochemical measurements in support of low resolution imaging. Multiple patches can be daisy chained and operated concurrently to enable large area body measurements.
Specifications
| PHYSIOLOGICAL MEASUREMENT |
| Blood oxygenation (SpO2), pulse rate (PR) and its variability (PR-V), inter beat interval (IBI), respiratory rate (RR), blood pressure (BP), photoplethysmography (PPG) |
| Body mass composition, hydration, electrodermal activity (EDA), galvanic skin response (GSR), conductance response (SCR), hemodynamic, respiratory rate (RR), thoracic, impedance cardiography (ICG), pneumography (IPG) or imaging (EIT) |
| Biopotentials, electrocardiography (ECG) and electromyography (EMG) |
| Skin, sweat vapours |
| Sweat, skin electrochemistry |
| Digital stethoscope |
| HARDWARE SENSORS |
| 6 channels scattering spectrometer (468/523/593/645/850/950nm) with lock-in amplifier |
| 16 electrode matrix for wide band 10Hz-1.5MHz bio-impedance analysis/spectroscopy (BIA/BIS), with 1st, 2nd and 3rd harmonics data acquisition. |
| 16 electrodes matrix for raw bio-potential acquisition. |
| Ionic gases (Al2O3), relative humidity (RH) and temperature (T) sensors |
| Potentiostat/galvanostat |
| 7Hz-1kHz audio frequency response |
| SDK SUPPORT |
| Spectrometer measurements. |
| Measurements of time-varying single or multi frequency bioimpedance, Bode, Nyquist plots. |
| Not available yet. |
| Gas, RH, T sensors measurements. |
| Voltametric measurements. |
| Not available yet. |
3D Model
Design files
- 3D model: SENSIPATCH – 3D
- Schematics: SENSIPATCH_schematics
- Layout: top, bottom
- Gerbers: SENSIPATCH
- BOM: Sensipatch
